Figur
Curves Meet Technology

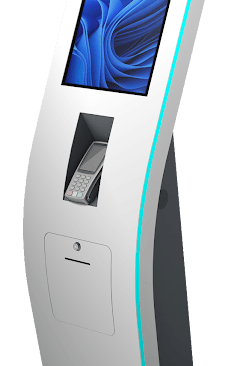

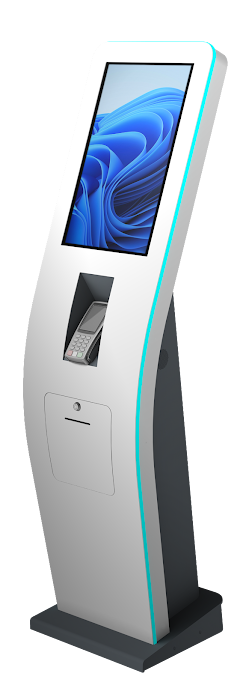

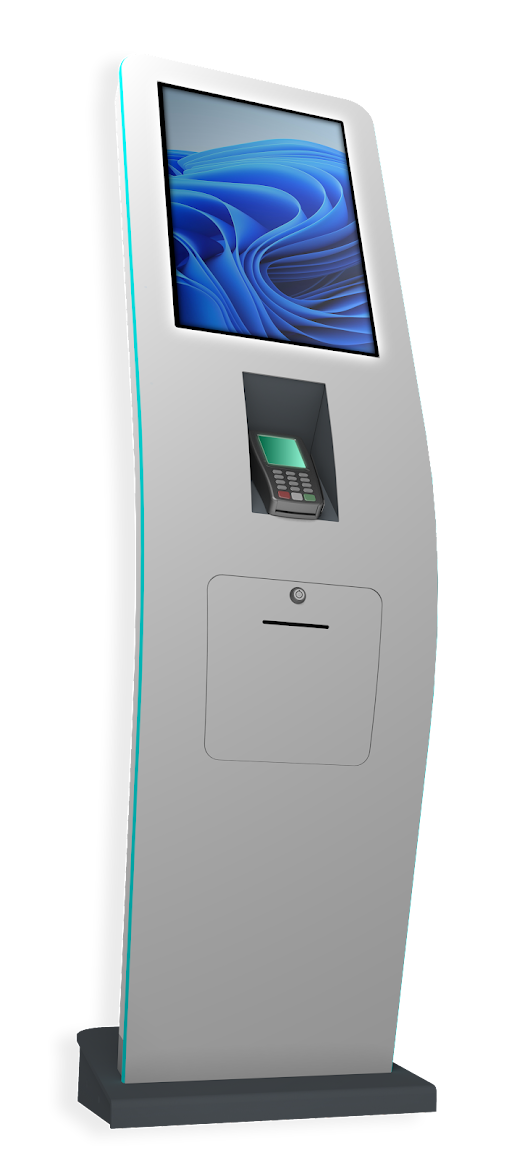

The kiosk that combines the elegance of continuously curving design with cutting-edge technology. Over the years, it has evolved to incorporate a wealth of technological advancements, all while retaining its signature curved-front concept, beloved by all who encounter it.


Unique
And
Versatile
Every Figur kiosk is a unique creation, reflecting the individual needs and preferences of our valued customers. However, they all share the original concept of a continuously curved front and captivating edge lighting.


Why Figur

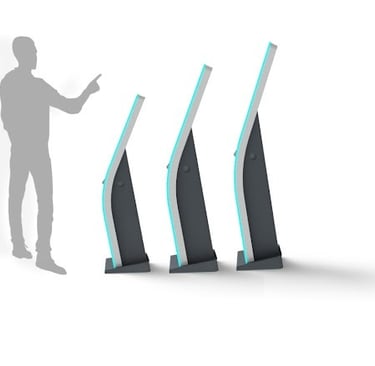

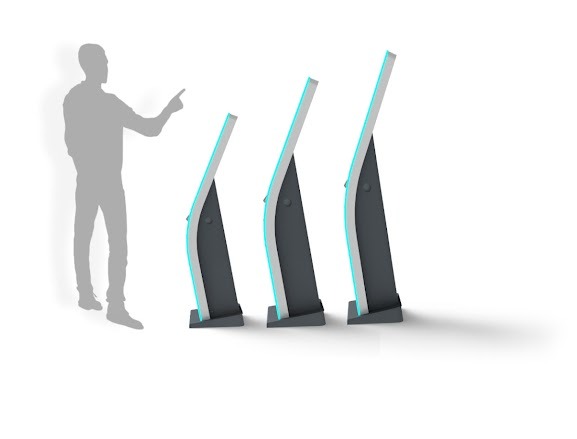

Graceful Curves, Three Heights
Figur now offers three height options, all embodying the same graceful curves that define its aesthetic appeal.
Widescreen Portrait Mode

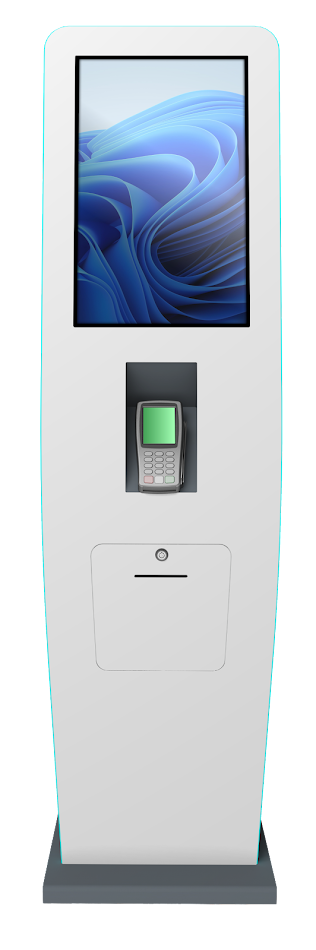

Figur pioneered the use of widescreen in portrait mode, creating a sleek and modern design that eliminates the need for old-style keyboards, preserving its clean lines. All Figur variants feature the 21.5” HD screen.
Versatile Applications
Figur has found favour in various industries, from football club shops and ticketing to hotels for check-in kiosks, airport handling, gym and leisure clubs, and even casinos.
Customisable Technology

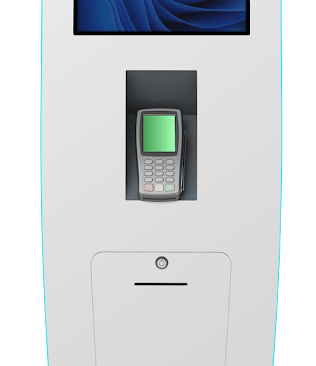

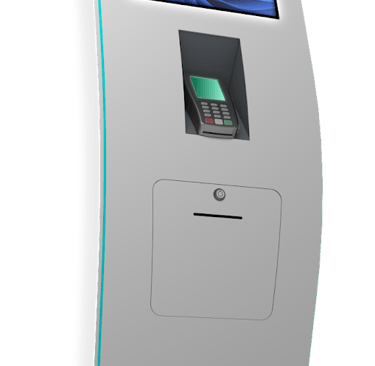

Figur seamlessly accommodates additional technology, including chip & pin payment PEDs, RFID reader/encoders, receipt printers, and barcode scanners—all at the same time, if needed.
Dynamic Edge Lighting
Figur’s edge lighting is fully customisable, offering RGB control of mixed colours. The lighting can be programmed by the customer or computer-controlled for specific messaging to customers. It’s a powerful tool for attracting and guiding kiosk users.
Reliable Performace
Figur is powered by one of our ION3 range of computers, purposefully designed and crafted by K4B for our stylish kiosks. Expect consistent and reliable performance.
Robust Conectivity
Connectivity options include 2.4/5.8GHz WiFi with MIMO antennas for reliable Wifi connection, LAN, and an optional 4G router with WAN backup software for a dependable connection almost anywhere.




Visual
Technical
Specification
OS: Win 10 (21H2) / Win 11 (24H2) IoT Enterprise LTSC
Processor: i3
RAM: 8GB
Storage: 128GB SSD
Screen: 21.5″ (16:9) HD screen (1920x1080px)
Touch: 10 point PCAP
WiFi: Integrated 2.4/5.8 GHz Wifi 6 MIMO
Ethernet: 1 port on rear
USB: 1 port on rear
Reset Button: on rear
Power: 110VAC to 240VAC
Operating Temperature: -10˚C to +50˚C
Options
Android OS
Processor upgrade: i5
2D barcode/QR scanner
PDQ/Chip & Pin
RFID Key encoders
50mm POS thermal printer for paper, labels and tickets
Front panel vinyl branding or message
Ethernet Hub LAN kiosk to Network
Dimensions
Short - WHD - 408 x 1361 x 364 mm
Standard - WHD - 408 x 1505 x 364 mm
Tall - WHD - 408 x 1653 x 364 mm






Where aesthetics meet technology, and customisation knows no bounds. Experience the allure of curves and innovation today.
Figur
