Timeless Design with Modern

Touches

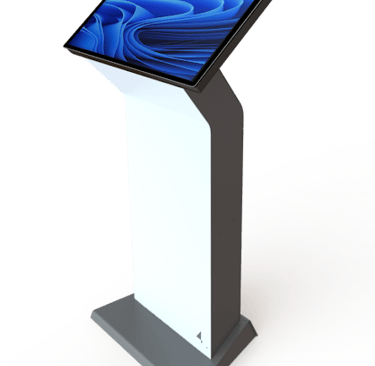

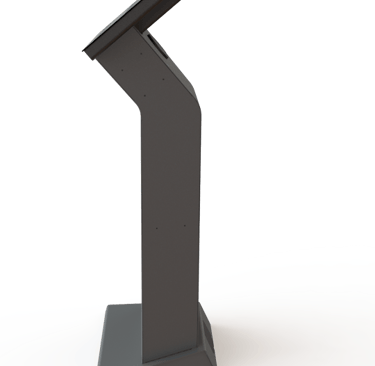

Eidos-Lite inherits the classic design elements of the original Eidos kiosk while incorporating modern updates. We have made the display style slimmer and moving to an edge-to-edge glass style by removing the ambient lighting. The single-piece welded body design makes it lighter, more cost-effective, and faster to produce.
For applications that do not require peripherals to be added to the kiosk, the Eidos-Lite represents great value. It is a long-lived kiosk based on the Eidos design profile but at an advantageous price compared to the original Eidos.

Why Eidos Lite Lite

Cost Effective Excellence

Eidos-Lite provides a reliable 21.5" touchscreen kiosk experience at an affordable price point for any standard self-service kiosk application.

Versatile Compatibility

Choose between Android or Windows 10 operating systems to suit your needs.

Compact & Space Saving

With its small footprint (545mm wide and 460mm deep), Eidos-Lite fits seamlessly into any environment.

Built to Last

Benefit from the enduring quality of K4B kiosks, ensuring years of trouble-free operation with minimal maintenance.

Visual

Technical

Specification

• OS: Win 10 (21H2) / Win 11 (24H2) IoT Enterprise LTSC

• Processor: i3

• RAM: 8GB

• Storage: 128GB SSD

• Screen: 21.5″ (16:9) HD screen (1920x1080px)

• Touch: 10 point PCAP

• WiFi: Integrated 2.4/5.8 GHz Wifi 6 MIMO

• Ethernet: 1 port on rear

• USB: 1 port on rear

• Reset Button: on rear

• Power: 110VAC to 240VAC

• Operating Temperature: -10˚C to +50˚C

Options

• Android OS

• Processor upgrade: i5

• 2D barcode/QR scanner

• PDQ/Chip & Pin

• RFID Key encoders

• 50mm POS thermal printer for paper, labels and tickets

• Front panel vinyl branding or message

Dimensions

• WHD 492 x 1126 x 343 mm

Where affordability meets style and reliability in the world of self-service kiosks. Upgrade your business today with the best of both worlds.
